MEANWELL LPC Series Constant Current Power Supply
Many In Stock
Ballast /Drivers

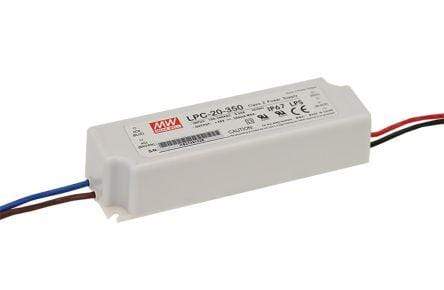

LPC-20-350
S7
Features:
- Constant current design
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Over voltage
- Cooling by free air convection
- Small and compact size
- Fully encapsulated with IP67 level (Note.7}
- Fully isolated plastic case
- Class Ⅱ power unit, no FG
- Class 2 power unit
- Pass LPS
- Suitable for LED related fixture or appliance(such as LED Decoration or Advertisement devices}
- 100% full load burn-in test
- Low cost, high reliability
Specification:
MODEL |
LPC-20-350 |
LPC-20-700 |
|
OUTPUT |
RATED CURRENT |
350mA |
700mA |
DC VOLTAGE RANGE |
9 ~ 48V |
9 ~ 30V |
|
RATED POWER |
16.8W |
21W |
|
RIPPLE & NOISE (max.) Note.2 |
200mVp-p |
200mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±5.0% |
||
CURRENT ACCURACY |
±5.0% |
||
LINE REGULATION |
±1.0% |
||
LOAD REGULATION |
±2.0% |
||
SETUP, RISE TIME Note.6 |
500ms, 250ms / 230VAC 500ms, 250ms / 115VAC at full load |
||
HOLD UP TIME (Typ.) |
50ms/230VAC 16ms/115VAC at full load |
||
INPUT |
VOLTAGE RANGE Note.4 |
90 ~ 264VAC 127 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
||
EFFICIENCY (Typ.) |
83% |
||
AC CURRENT (Typ.) |
0.55A/115VAC 0.35A/230VAC |
||
INRUSH CURRENT(Typ.) |
COLD START 70A(twidth=220μs measured at 50% Ipeak) at 230VAC |
||
MAX. No. of PSUs on 16A CIRCUIT BREAKER |
8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC |
||
LEAKAGE CURRENT |
0.25mA / 240VAC |
||
PROTECTION |
OVER VOLTAGE |
50.4 ~ 60V |
31.5 ~ 40.5V |
Protection type : Shut off o/p voltage, clamping by zener diode |
|||
ENVIRONMENT |
WORKING TEMP. |
-30~ +70℃ (Refer to "Derating Curve") |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||
SAFETY & EMC |
SAFETY STANDARDS |
UL879, UL1310 , CSA C22.2 No. 207-M89(except for LPC-20-350), CAN/CSA C22.2 No. 223-M91(except for LPC-20-350), TUV EN60950-1, EAC TP TC 004, IP67 approved |
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
||
ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
||
OTHERS |
MTBF |
786.5Khrs min. MIL-HDBK-217F (25℃) |
|
DIMENSION |
118*35*26mm (L*W*H) |
||
PACKING |
0.22Kg; 60pcs/14.2Kg/0.62CUFT |

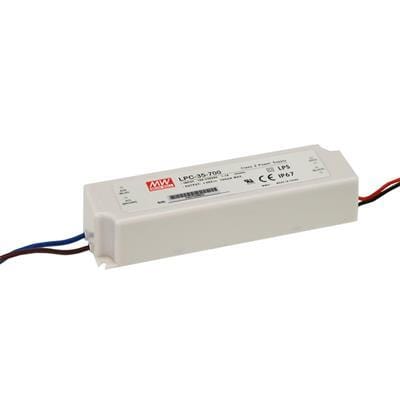

MODEL |
LPC-35-700 |
LPC-35-1050 |
LPC-35-1400 |
|
OUTPUT |
RATED CURRENT |
700mA |
1050mA |
1400mA |
DC VOLTAGE RANGE |
9 ~ 48V |
9 ~ 30V |
9 ~ 24V |
|
RATED POWER |
33.6W |
31.5W |
33.6W |
|
RIPPLE & NOISE (max.) Note.2 |
200mVp-p |
200mVp-p |
200mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±5.0% |
|||
CURRENT ACCURACY |
±5.0% |
|||
LINE REGULATION |
±1.0% |
|||
LOAD REGULATION |
±2.0% |
|||
SETUP, RISE TIME Note.6 |
500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load |
|||
HOLD UP TIME (Typ.) |
50ms/230VAC 16ms/115VAC at full load |
|||
INPUT |
VOLTAGE RANGE Note.4 |
90 ~ 264VAC 127 ~ 370VDC |
||
FREQUENCY RANGE |
47 ~ 63Hz |
|||
EFFICIENCY (Typ.) |
85% |
|||
AC CURRENT (Typ.) |
1.1A/115VAC 0.7A/230VAC |
|||
INRUSH CURRENT(Typ.) |
COLD START 55A(twidth=500μs measured at 50% Ipeak) at 230VAC |
|||
MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC |
|||
LEAKAGE CURRENT |
0.25mA / 240VAC |
|||
PROTECTION |
OVER VOLTAGE |
50.4 ~ 60V |
31.5 ~ 40.5V |
27.6 ~ 32.4V |
Protection type : Shut off o/p voltage, clamping by zener diode |
||||
ENVIRONMENT |
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
|||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
|||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||
SAFETY & EMC |
SAFETY STANDARDS |
UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), BIS IS15885, EAC TP TC 004, IP67 approved ; design refer to TUV EN60950-1 |
||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|||
ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
|||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 |
|||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
|||
OTHERS |
MTBF |
743.5Khrs min. MIL-HDBK-217F (25℃) |
||
DIMENSION |
148*40*30mm (L*W*H) |
|||
PACKING |
0.34Kg; 40pcs/14.6Kg/0.63CUFT |
MODEL |
LPC-60-1050 |
LPC-60-1400 |
LPC-60-1750 |
|
OUTPUT |
RATED CURRENT |
1050mA |
1400mA |
1750mA |
DC VOLTAGE RANGE |
9 ~ 48V |
9 ~ 42V |
9 ~ 34V |
|
RATED POWER |
50.4W |
58.8W |
59.5W |
|
RIPPLE & NOISE (max.) Note.2 |
200mVp-p |
200mVp-p |
200mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±5.0% |
|||
CURRENT ACCURACY |
±5.0% |
|||
LINE REGULATION |
±1.0% |
|||
LOAD REGULATION |
±2.0% |
|||
SETUP, RISE TIME Note.6 |
500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load |
|||
HOLD UP TIME (Typ.) |
50ms/230VAC 16ms/115VAC at full load |
|||
INPUT |
VOLTAGE RANGE Note.4 |
90 ~ 264VAC 127 ~ 370VDC |
||
FREQUENCY RANGE |
47 ~ 63Hz |
|||
EFFICIENCY (Typ.) |
87% |
85% |
87% |
|
AC CURRENT (Typ.) |
1.2A/115VAC 0.7A/230VAC |
|||
INRUSH CURRENT(Typ.) |
COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC |
|||
MAX. No. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
|||
LEAKAGE CURRENT |
0.25mA / 240VAC |
|||
PROTECTION |
OVER VOLTAGE |
50.4 ~ 60V |
44.1 ~ 56.7V |
39.1 ~ 45.9V |
Protection type : Shut off o/p voltage, clamping by TVS diode |
||||
ENVIRONMENT |
WORKING TEMP. |
-30 ~ +70℃ (Refer to "Derating Curve") |
||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
|||
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
|||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||
SAFETY & EMC |
SAFETY STANDARDS |
Ul1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC60950-1:2005+A2:2013 approved ; design refer to TUV EN60950-1 |
||
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|||
ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
|||
EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 |
|||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
|||
OTHERS |
MTBF |
732Khrs min. MIL-HDBK-217F (25℃) |
||
DIMENSION |
162.5*42.5*32mm (L*W*H) |
|||
PACKING |
0.4Kg; 32pcs/13.8Kg/0.56CUFT |
|||
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit. 8. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. |
