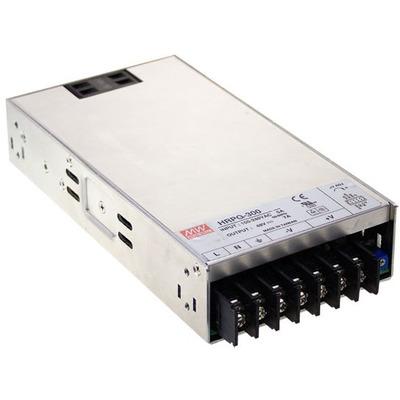

MEANWELL HRPG Series With PFC

$ 194.01 $ 208.00

Many In Stock

Ballast /Drivers

HRPG-300-12

S7

Add to wishlist
Features:
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • 1U low profile 41mm
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.6}

Specification:

MODEL

HRPG-300-3.3

HRPG-300-5

HRPG-300-7.5

HRPG-300-12

HRPG-300-15

HRPG-300-24

HRPG-300-36

HRPG-300-48















OUTPUT

DC VOLTAGE

3.3V

5V

7.5V

12V

15V

24V

36V

48V

RATED CURRENT

60A

60A

40A

27A

22A

14A

9A

7A

CURRENT RANGE

0 ~ 60A

0 ~ 60A

0 ~ 40A

0 ~ 27A

0 ~ 22A

0 ~ 14A

0 ~ 9A

0 ~ 7A

RATED POWER

198W

300W

300W

324W

330W

336W

324W

336W

RIPPLE & NOISE (max.) Note.2

80mVp-p

90mVp-p

100mVp-p

120mVp-p

150mVp-p

150mVp-p

250mVp-p

250mVp-p

VOLTAGE ADJ. RANGE

2.8 ~ 3.8V

4.3 ~ 5.8V

6.8 ~ 9V

10.2 ~ 13.8V

13.5 ~ 18V

21.6 ~ 28.8V

28.8 ~ 39.6V

40.8 ~ 55.2V

VOLTAGE TOLERANCE Note.3

±2.5%

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1000ms, 50ms/230VAC             2500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC            16ms/115VAC at full load









INPUT

VOLTAGE RANGE            Note.5

85 ~ 264VAC           120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.95/230VAC            PF>0.99/115VAC at full load

EFFICIENCY (Typ.)

80%

82%

86%

88%

88%

87%

88%

89%

AC CURRENT (Typ.)

3.5A/115VAC         1.8A/230VAC

INRUSH CURRENT (Typ.)

35A/115VAC           70A/230VAC

LEAKAGE CURRENT

<1.2mA / 240VAC







PROTECTION



OVERLOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

3.96 ~ 4.62V

6 ~ 7V

9.4 ~ 10.9V

14.4 ~ 16.8V

18.8 ~ 21.8V

30 ~ 34.8V

41.4 ~ 48.6V

57.6 ~ 67.2V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down





FUNCTION

5V STANDBY

5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)

DC OK SIGNAL

PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V

REMOTE CONTROL

RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off

FAN CONTROL (Typ.)

Load 35±15% or RTH2≧50℃ Fan on







ENVIRONMENT

WORKING TEMP.

-40 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

± 0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL62368-1, TUV EN62368-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

176K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

199*105*41mm (L*W*H)

PACKING

0.95Kg;15pcs/15.3Kg/0.69CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on   a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com}

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. No load power consumption<0.5W when RC- & RC+ (CN100 pin4,6} 0 ~ 0.8V or short.

7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
