MEANWELL HLG Series Constant Current Power Supply

$ 69.27 $ 268.64

Many In Stock

Ballast /Drivers

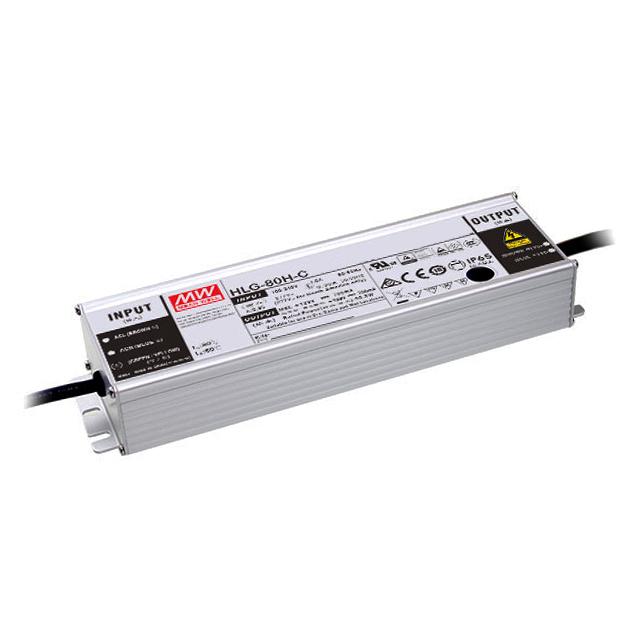

HLG-80H-C700B

S7

Add to wishlist

Features:

  • Constant Current mode output
  • Metal housing with Classdesign
  • Built-in active PFC function
  • Environment-adaptive driving capability
  • IP67 / IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off,isolated design}; Smart timer dimming; Low temperature light-on; Junction box
  • Typical lifetime>62000 hours (Note.7}

Applications:

  • LED Harbour
  • LED greenhouse lighting
  • LED statium lighting
  • LED mining lighting
  • Type “HL” for use in ClassⅠ,Division 2 hazardous(Classified} location

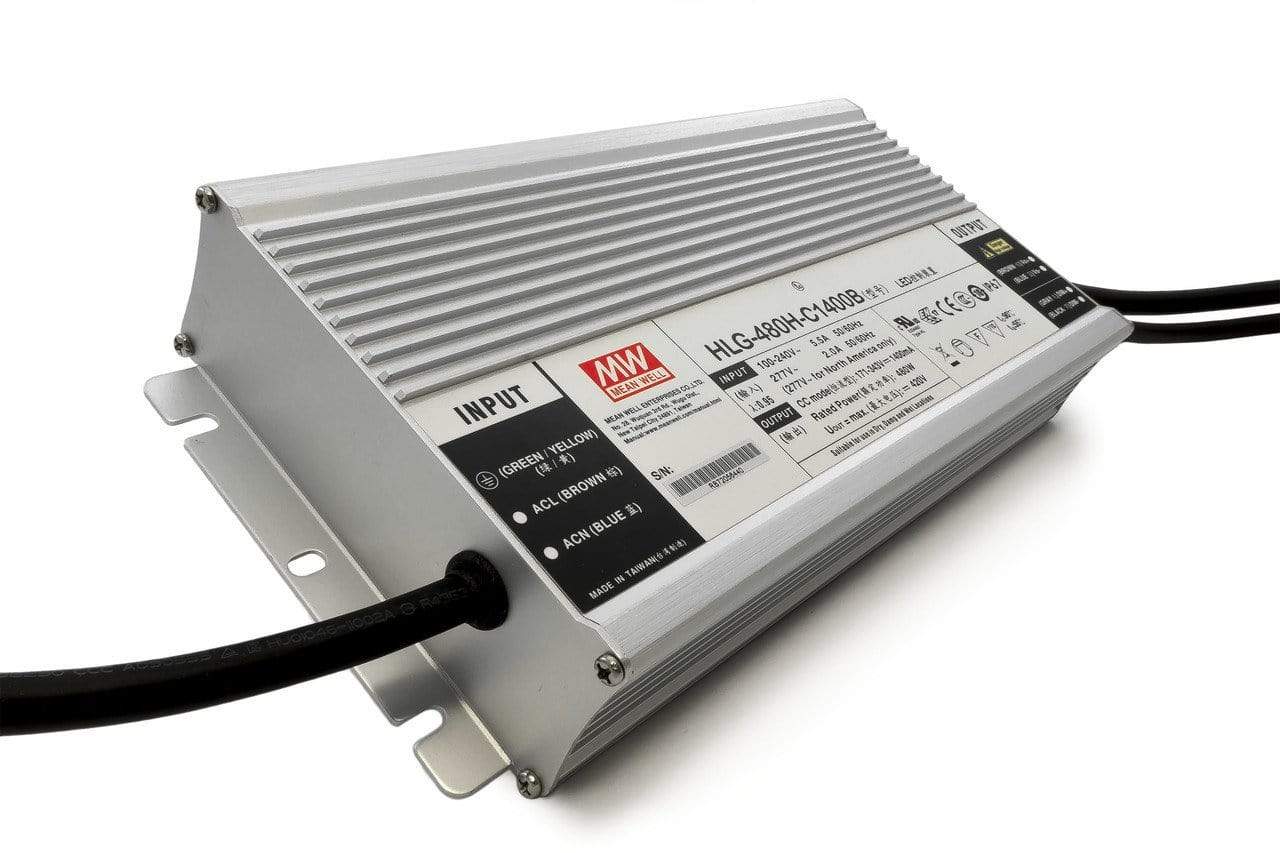

HLG-480H-C2100B

HLG----->Series name

480---->Rated wattage

H---->High input voltage up to 305VAC

C2100---->Rated output current(1400/1750/2100/2800/3500mA}

B---->Function options

Type

IP Level

Function

A

IP65

o adjustable through built-in potentiometer. And environment adaptiveness.

B

IP67

3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance} and environment adaptiveness.



MODEL

HLG-80H-C350

HLG-80H-C700









OUTPUT

RATED CURRENT

350mA

700mA

RATED POWER

89.95W

90.3W

CONSTANT CURRENT REGION Note.2

A-Type : 128V ~ 257V           B-Type : 167V ~ 257V

A-Type : 64V ~ 129V           B-Type : 84V ~ 129V

CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

210 ~ 350mA

420 ~ 700mA

CURRENT RIPPLE

8.0% max. @rated current

CURRENT TOLERANCE

±5%

SET UP TIME                     Note.4

500ms/115VAC, 230VAC













INPUT

VOLTAGE RANGE            Note.3

90 ~ 305VAC           127 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

TOTAL HARMONIC DISTORTION

THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)

EFFICIENCY (Typ.)

91.5%

91.5%

AC CURRENT (Typ.)

0.88A / 115VAC           0.45A / 230VAC           0.38A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 60A(twidth=410μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER

4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC





PROTECTION

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

300 ~ 340V

150 ~ 170V

Shut down o/p voltage with auto-recovery or re-power on to recovery

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover







ENVIRONMENT

WORKING TEMP.

Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)

MAX. CASE TEMP.

Tcase=+80℃

WORKING HUMIDITY

10 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS Note.6

Ul8750, CSA C22.2 No. 250.0-08, EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent,GB19510.1,GB19510.14,

EAC TP TC 004,IP65 or IP67 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION                 Note.6

Compliance to EN55015, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020



OTHERS

MTBF

861.8K hrs min.        Telcordia SR-332 (Bellcore) ;   309.7K hrs min.          MIL-HDBK-217F (25℃)

DIMENSION

195.6*61.5*38.8 mm (L*W*H)

PACKING

0.84Kg; 16pcs/14.4Kg/0.54CUFT

MODEL

HLG-480H-C1400

HLG-480H-C1750

HLG-480H-C2100

HLG-480H-C2800

HLG-480H-C3500













OUTPUT

RATED CURRENT

1400mA

1750mA

2100mA

2800mA

3500mA

RATED POWER

480W

480W

481W

479W

480W

CONSTANT CURRENT REGION Note.2

171 ~ 343V

137~274V

114 ~ 229V

85 ~ 171V

68 ~ 137V

OPEN CIRCUIT VOLTAGE (max.)

420V

340V

280V

210V

170V



CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

700~1400mA

875~1750mA

1050~2100mA

1400~2800mA

1750~3500mA

CURRENT RIPPLE

5.0% max. @rated current

CURRENT TOLERANCE

±5%

SET UP TIME

Note.4

500ms/115VAC,230VAC

















INPUT



VOLTAGE RANGE



Note.3

90 ~ 305VAC           127 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz



POWER FACTOR (Typ.)

PF0.98/115VAC, PF0.97/230VAC, PF0.95/277VAC @full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)



TOTAL HARMONIC DISTORTION

THD< 20% (@ load40% /115VAC, 230VAC, 277VAC)

(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)

EFFICIENCY (Typ.)

95%

95%

95%

95%

95%

AC CURRENT (Typ.)

5A / 115VAC

2.45A / 230VAC

2A / 277VAC





INRUSH CURRENT(Typ.)

COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. NO. of PSUs on 16A CIRCUIT BREAKER



2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC





PROTECTION

SHORT CIRCUIT

Constant current, recovers automatically after fault condition is removed



OVER VOLTAGE

432 ~ 473V

345 ~ 382V

289 ~ 322V

215 ~ 246V

173 ~ 197V

Shut down output voltage, re-power on to recovery

OVER TEMPERATURE

Shut down output voltage, re-power on to recovery









ENVIRONMENT

WORKING TEMP.

Tcase=-40 ~ +90(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)

MAX. CASE TEMP.

Tcase=+90

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.02%/℃ (0 ~ 60℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC

SAFETY STANDARDS

UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN55015, EN61000-3-2 Class C (@load≧50%); EN61000-3-3; GB17743, GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020



OTHERS

MTBF

421.1K hrs min.       Telcordia SR-332(Bellcore) ; 110.5K hrs min.     MIL-HDBK-217F (25℃)

DIMENSION

262*125*43.8mm (L*W*H)

PACKING

2.8Kg;4pcs/12.2Kg/0.55CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.

2. Please refer to "DRIVING METHODS OF LED MODULE".

3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.

4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.

5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC}, is about 75℃ or less.

8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.

10.  For any application note and IP water proof function installation caution, please refer our user manual before using.

https://www.meanwell.com/Upload/PDF/LED_EN.pdf
