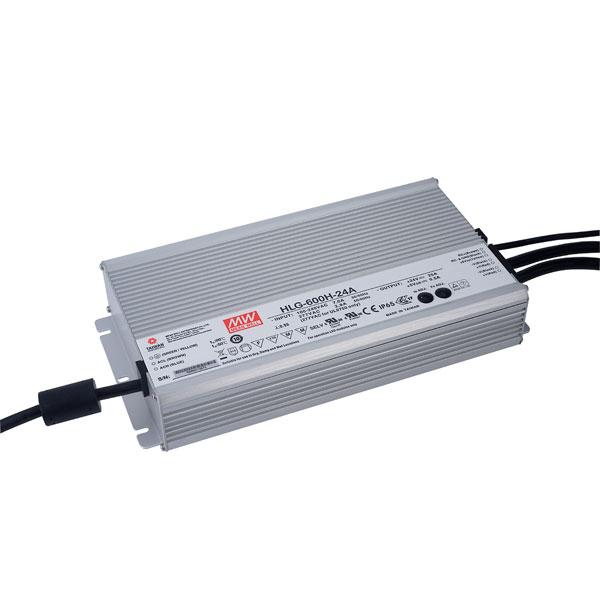

MEANWELL HLG Series Constant Voltage+Constant Current Power Supply

$ 52.61 $ 339.00

Many In Stock

Ballast /Drivers

HLG-40H-12A

S7

Add to wishlist

Features:

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
  • Typical lifetime > 62000 hours

Applications:

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified}

HLG-40H-36[A] :

HLG---->Series name

40H----->Rated wattage

36------->Rated output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V}

A----->Function options

Type

IP Level

Function

Blank

IP67

Io and Vo fixed

A

IP65

Io and Vo adjustable through built-in potentiometer

B

IP67

3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance}




Specification:

MODEL

HLG-40H-12

HLG-40H-15

HLG-40H-20

HLG-40H-24

HLG-40H-30

HLG-40H-36

HLG-40H-42

HLG-40H-48

HLG-40H-54



















OUTPUT

DC VOLTAGE

12V

15V

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.4

7.2 ~12V

9 ~ 15V

12 ~ 20V

14.4 ~ 24V

18 ~ 30V

21.6 ~ 36V

25.2 ~ 42V

28.8 ~ 48V

32.4 ~ 54V

RATED CURRENT

3.33A

2.67A

2A

1.67A

1.34A

1.12A

0.96A

0.84A

0.75A

RATED POWER

39.96W

40.05W

40W

40.08W

40.2W

40.32W

40.32W

40.32W

40.5W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

300mVp-p

300mVp-p



VOLTAGE ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

10.8 ~ 13.5V

13.5 ~ 17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

40 ~ 46V

44 ~ 53V

49 ~ 58V



CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

2 ~ 3.33A

1.6 ~ 2.67A

1.2 ~ 2A

1 ~ 1.67A

0.8 ~ 1.34A

0.67 ~ 1.12A

0.58 ~ 0.96A

0.5 ~ 0.84A

0.45 ~ 0.75A

VOLTAGE TOLERANCE Note.3

±2.5%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±2.0%

±1.5%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME           Note.6

500ms,80ms/115VAC 500ms,80ms/230VAC

HOLD UP TIME (Typ.)

16ms / 115VAC, 230VAC

















INPUT



VOLTAGE RANGE            Note.5

90 ~ 305VAC           127 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz



POWER FACTOR (Typ.)

PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)



TOTAL HARMONIC DISTORTION

THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)

(Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)

EFFICIENCY (Typ.)

86.5%

86.5%

88%

88%

88.5%

88.5%

88.5%

89.5%

89.5%

AC CURRENT (Typ.)

0.43A / 115VAC           0.24A / 230VAC           0.23A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER



12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC







PROTECTION

OVER CURRENT

95 ~ 108%

Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed



OVER VOLTAGE

15 ~ 21V

18 ~ 24V

23 ~ 30V

28 ~ 35V

35 ~ 43V

41 ~ 49V

48 ~ 58V

54 ~ 65V

59 ~ 68V

Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover







ENVIRONMENT

WORKING TEMP.

Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)

MAX. CASE TEMP.

Tcase= +80℃

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 60℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes









SAFETY & EMC



SAFETY STANDARDS Note.8

UL8750(type”HL”), CSA C22.2 No. 250.0-08 , EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent ,

GB19510.1,GB19510.14,EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB-type), IP65 or IP67 approved ;

optional models for J61347-1,J61347-2-13 ; design refer to UL60950-1, TUV EN60950-1, EN60335-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION                  Note.8

Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024,

light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020



OTHERS

MTBF

1131.9K hrs min.       Telcordia SR-332 (Bellcore) ; 336.5K hrs min.     MIL-HDBK-217F (25℃)

DIMENSION

171*61.5*36.8mm (L*W*H)

PACKING

0.73Kg; 20pcs/15.6Kg/0.9CUFT

MODEL

HLG-80H-12

HLG-80H-15

HLG-80H-20

HLG-80H-24

HLG-80H-30

HLG-80H-36

HLG-80H-42

HLG-80H-48

HLG-80H-54



















OUTPUT

DC VOLTAGE

12V

15V

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.4

7.2 ~12V

9 ~ 15V

12 ~ 20V

14.4 ~ 24V

18 ~ 30V

21.6 ~ 36V

25.2 ~ 42V

28.8 ~ 48V

32.4 ~ 54V

RATED CURRENT

5A

5A

4A

3.4A

2.7A

2.3A

1.95A

1.7A

1.5A

RATED POWER

60W

75W

80W

81.6W

81W

82.8W

81.9W

81.6W

81W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p



VOLTAGE ADJ. RANGE

Adjustable for A-Type only (via built-in potentiometer)

10.8 ~ 13.5V

13.5 ~ 17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

38 ~ 46V

43 ~ 53V

49 ~ 58V



CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

3 ~ 5A

3 ~ 5A

2.4 ~ 4A

2.04 ~ 3.4A

1.62 ~ 2.7A

1.38 ~ 2.3A

1.17 ~ 1.95A

1.02 ~ 1.7A

0.9 ~ 1.5A

VOLTAGE TOLERANCE Note.3

±2.5%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±2.0%

±1.5%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

Note.6

1200ms,200ms/115VAC 500ms,200ms/230VAC

HOLD UP TIME (Typ.)

16ms at full load

230VAC /115VAC



























INPUT



VOLTAGE RANGE



Note.5

90 ~ 305VAC           127 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz



POWER FACTOR (Typ.)

PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)



TOTAL HARMONIC DISTORTION

THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)

(Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)

EFFICIENCY (Typ.)

88%

89%

90%

90.5%

91%

91%

91%

91%

91%

AC CURRENT (Typ.)

0.85A / 115VAC

0.425A / 230VAC

0.4A / 277VAC









INRUSH CURRENT (Typ.)

COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER



3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC







PROTECTION

OVER CURRENT

95 ~ 108%

Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed



OVER VOLTAGE

14 ~ 17V

18 ~ 24V

23 ~ 30V

28 ~ 35V

35 ~ 43V

41 ~ 49V

48 ~ 58V

54 ~ 63V

59 ~ 68V

Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover









ENVIRONMENT

WORKING TEMP.

Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)

MAX. CASE TEMP.

Tcase= +80℃

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 60℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes









SAFETY & EMC



SAFETY STANDARDS Note.8

UL8750(type”HL”), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H- BL;EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent, optional models for J61347-1, J61347-2-13, GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 36A,54A only),IP65 or IP67,

KC61347-1,KC61347-2-13(except for AB,BL-type) approved; Design refer to UL60950-1, TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Note.8

Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%); EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020



OTHERS

MTBF

1069K hrs min.       Telcordia SR-332 (Bellcore) ; 357.8K hrs min.      MIL-HDBK-217F (25℃)

DIMENSION

195.6*61.5*38.8mm (L*W*H)

PACKING

0.84Kg; 16pcs/14.4Kg/0.54CUFT

MODEL

HLG-100H-20

HLG-100H-24

HLG-100H-30

HLG-100H-36

HLG-100H-42

HLG-100H-48

HLG-100H-54



















OUTPUT

DC VOLTAGE

20V

24V

30V

36V

42V

48V

54V

CONSTANT CURRENT REGION Note.4

10 ~ 20V

12 ~ 24V

15 ~ 30V

18 ~ 36V

21 ~ 42V

24 ~ 48V

27 ~ 54V

RATED CURRENT

4.8A

4A

3.2A

2.65A

2.28A

2A

1.77A

RATED POWER

96W

96W

96W

95.4W

95.76W

96W

95.58W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p



VOLTAGE ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

38 ~ 46V

43 ~ 53V

49 ~ 58V



CURRENT ADJ. RANGE

Adjustable for A/AB-Type only (via built-in potentiometer)

3 ~ 4.8A

2.5 ~ 4A

2 ~ 3.2A

1.65 ~ 2.65A

1.4 ~ 2.28A

1.25 ~ 2A

1.1 ~ 1.77A

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME           Note.6

1200ms,50ms/115VAC 500ms,50ms/230VAC

HOLD UP TIME (Typ.)

16ms / 115VAC, 230VAC

















INPUT



VOLTAGE RANGE            Note.5

90 ~ 305VAC           127 ~ 431VDC

(Please refer to "STATIC CHARACTERISTIC" section)

FREQUENCY RANGE

47 ~ 63Hz



POWER FACTOR (Typ.)

PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load

(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)



TOTAL HARMONIC DISTORTION

THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)

(Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)

EFFICIENCY (Typ.)

93%

93%

93%

93%

93%

93%

93%

AC CURRENT (Typ.)

1.2A / 115VAC           0.55A / 230VAC           0.5A / 277VAC

INRUSH CURRENT (Typ.)

COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

MAX. No. of PSUs on 16A CIRCUIT BREAKER



4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC







PROTECTION

OVER CURRENT

95 ~ 106%

Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

23 ~ 27V

28 ~ 34V

34 ~ 38V

41 ~ 46V

47 ~ 53V

54 ~ 63V

59 ~ 65V

Shut down o/p voltage with auto-recovery or re-power on to recovery

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down









ENVIRONMENT

WORKING TEMP.

Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)

MAX. CASE TEMP.

Tcase= +80℃

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 60℃)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes







SAFETY & EMC



SAFETY STANDARDS Note.8

UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent;

GB19510.1,GB19510.14,IP65 or IP67, J61347-1, J61347-2-13, KC61347-1,KC61347-2-13(except for AB,D-type),

EAC TP TC 004 approved ; design refer to UL60950-1, TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION                  Note.8

Compliance to EN55015, EN55032 Class B, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020



OTHERS

MTBF

192.2K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

220*68*38.8mm (L*W*H)

PACKING

1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL HLG-600H-12/120-12/185-12/240-12 HLG-600H-15 HLG-600H-20 HLG-600H-24/120-24/150-24/185-24/320-24
  DC VOLTAGE 12V 15V 20V 24V
  CONSTANT CURRENT REGION Note.4 6 ~12V 7.5 ~ 15V 10 ~ 20V 12 ~ 24V 15 ~ 30V
  RATED CURRENT 40A/10A/13A/16A 36A 28A 25A/5A/6.3A/7.8A/13.34A 20A
  RATED POWER 480W/120W/156W/192W 540W 560W 600W/120W/150W/187.2W/320.16W 600W
  RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p
    Adjustable for A-Type only (via built-in potentiometer)
  VOLTAGE ADJ. RANGE 10.2 ~ 12.6V 12.7 ~ 15.8V 17 ~ 21V 20.4 ~ 25.2V 25.5 ~ 31.5V
    Adjustable for A-Type only (via built-in potentiometer)
OUTPUT CURRENT ADJ. RANGE 20 ~ 40A 18 ~ 36A 14 ~ 28A 12.5 ~ 25A 10 ~ 20A
  VOLTAGE TOLERANCE Note.3 ±3.0% ±2.0% ±1.5% ±1.0% ±1.0%
  LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
  LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5%
  SETUP, RISE TIME Note.6 500ms, 80ms/ 115VAC, 230VAC
  HOLD UP TIME (Typ.) 15ms / 115VAC, 230VAC
      90 ~ 305VAC 127 ~ 431VDC
  VOLTAGE RANGE Note.5 (Please refer to "STATIC CHARACTERISTIC" section)
  FREQUENCY RANGE 47 ~ 63Hz
    PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load
  POWER FACTOR (Typ.) (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
  TOTAL HARMONIC DISTORTION THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC)
  (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
  EFFICIENCY 230VAC 92% 93.50% 94.50% 95% 95%
  (Typ.) 277VAC 92.50% 93.50% 94.50% 95% 95%
  AC CURRENT (Typ.) 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INPUT INRUSH CURRENT(Typ.) COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
  MAX. No. of PSUs on 16A CIRCUIT BREAKER
  1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
  LEAKAGE CURRENT <0.75mA / 277VAC
  STANDBY POWER CONSUMPTION <0.5W at remote off
  OVER CURRENT   95 ~ 108%
  Note.4 Constant current limiting, recovers automatically after fault condition is removed
  SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
PROTECTION   13 ~ 16V 16.5 ~ 20.5V 22 ~ 26V 26 ~ 30V 32.5 ~ 36.5V
  OVER VOLTAGE Shut down o/p voltage, re-power on to recover
  OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
  REMOTE ON/OFF CONTROL Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
FUNCTION 5V STANDBY 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)
  WORKING TEMP. Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
  MAX. CASE TEMP. Tcase= +90℃
  WORKING HUMIDITY 20 ~ 95% RH non-condensing
ENVIRONMENT STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH non-condensing
  TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 55℃)
  VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
    UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67, J61347-1, J61347-2-13, CCC GB4943.1, EAC TP TC 004, AS/NZS 60950.1(by CB),
  SAFETY STANDARDS Note.7 KC61347-1, KC61347-2-13(for 24A,36A,48A,54A only) approved
  WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
  ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
SAFETY & EMC     Compliance to EN55032 (CISPR32) Class B, EN55015, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3, EAC TP TC 020;
(Note 10) EMC EMISSION Note.7 KC KN15, KN61547(for 24A,36A,48A,54A only)
    Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),
  EMC IMMUNITY EAC TP TC 020; KC KN15, KN61547(for 24A,36A,48A,54A only)
  MTBF 76.9K hrs min. MIL-HDBK-217F (25℃)
OTHERS DIMENSION 280*144*48.5mm (L*W*H)
  PACKING 3.9Kg; 4pcs/16.6Kg/0.9CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The model certified for CCC(GB19510.14, GB19510.1, GB17743 and GB17625.1} is an optional model . Please contact MEAN WELL for details.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly
tc point (or TMP, per DLC}, is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The driver is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com}
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
