S7

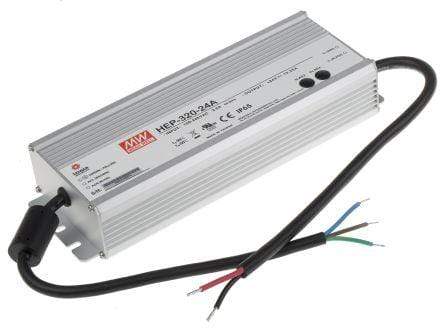

MEANWELL HEP Series Constant Voltage Power Supply

MEANWELL HEP Series Constant Voltage Power Supply

SKU SKU:HEP-320-24A

Regular price $ 207.70 SGD
Regular price $ 223.00 SGD Sale price $ 207.70 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Voltage
Type

Datasheet

Features:

  • Universal AC input / Full range(up to 305VAC}
  • Built-in active PFC function
  • High efficiency up to 95%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8}
  • Protections: Short circuit / Overload / Over voltage / Over temperature

Applications:

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Description:

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection

Model Encoding: Model HEP-320-24A
HEP-320-12A
HEP--->Series name
320--->Output wattage
12--->Output voltage
A--->Function mode option

      { A : Standard model, IP65, Vo and o level can be adjusted through internal               potentiometer.

     Blank : Optional model, IP68, with fixed Vo and Io level}

SPECIFICATION:Model HEP-320-24A

MODEL

HEP-320-12

HEP-320-15

HEP-320-24

HEP-320-36

HEP-320-48

HEP-320-54

















OUTPUT

DC VOLTAGE

12V

15V

24V

36V

48V

54V

RATED CURRENT

22A

19A

13.34A

8.9A

6.7A

5.95A

RATED POWER

264W

285W

320.16W

320.4W

321.6W

321.3W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

150mVp-p

250mVp-p

250mVp-p

350mVp-p

VOLTAGE ADJ. RANGE Note.5

10.8 ~ 13.5V

13.5 ~ 17V

21 ~ 26V

32 ~ 39V

43 ~ 52V

49 ~ 58V

CURRENT ADJ. RANGE Note.5

11 ~ 22A

9.5 ~ 19A

6.67 ~ 13.34A

4.45 ~ 8.9A

3.35 ~ 6.7A

2.97 ~ 5.95A

VOLTAGE TOLERANCE Note.3

±3.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±2.0%

±1.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME           Note.6

2500ms,80ms/115VAC        500ms,80ms/230VAC at full load

HOLD UP TIME (Typ.)

15ms at full load 230VAC /115VAC











INPUT

VOLTAGE RANGE            Note.4

90 ~ 305VAC           127 ~ 431VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load

EFFICIENCY (Typ.)

91%

92.5%

94%

94%

94.5%

95%

AC CURRENT (Typ.)

3.5A / 115VAC           1.65A / 230VAC           1.45A / 277VAC

INRUSH CURRENT(Typ.)

COLD START 70A at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC









PROTECTION



OVER CURRENT

105 ~ 125%

Protection type : Hiccup mode, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed



OVER VOLTAGE

14 ~ 17V

17.5 ~ 21V

27 ~ 33V

40 ~ 46V

53.5 ~ 60V

59 ~ 65V

Protection type : Shut down and latch off o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down and latch off o/p voltage, re-power on to recover







ENVIRONMENT

WORKING TEMP.

-55 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-60 ~ +80℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 60℃)

VIBRATION

20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes







SAFETY & EMC

SAFETY STANDARDS Note.8

UL60950-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; design refer to TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020





OTHERS

MTBF

154.2K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

252*90*43.8mm (L*W*H)

PACKING

1.88Kg; 8pcs/16Kg/0.92CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Derating may be needed under low input voltages. Please check the static characteristics for more details.

5. A-type only.

6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

8. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
