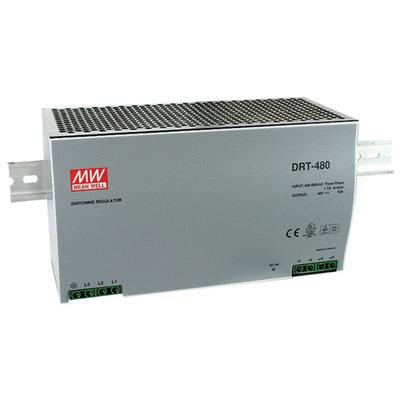

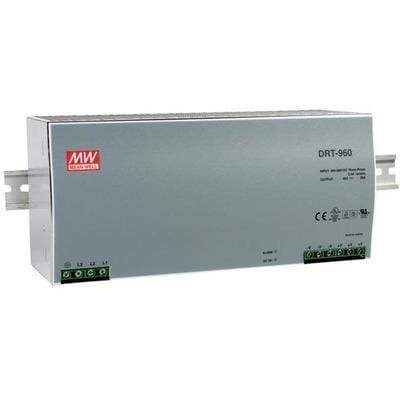

MEANWELL DRT Series Rail Mount Power Supply

$ 151.78 $ 348.00

Many In Stock

Ballast /Drivers

DRT-240-24

S7

Add to wishlist
Features :
  • Three-Phase AC 340 ~ 550V wide range input
  • High efficiency 91% and low dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional parallel function(1+1}
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment}approved
  • EN61000-6-2(EN50082-2} industrial immunity level 100% full load burn-in test

Specification:

MODEL

DRT-240-24

DRT-240-48













OUTPUT

DC VOLTAGE

24V

48V

RATED CURRENT

10A

5A

CURRENT RANGE

0 ~ 10A

0 ~ 5A

RATED POWER

240W

240W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

24 ~ 28V

48 ~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

SETUP, RISE, HOLD UP TIME

1200ms, 40ms, 20ms/400VAC           800ms, 40ms, 40ms/500VAC at full load









INPUT

VOLTAGE RANGE            Note.5

Three-Phase 340 ~ 550VAC (Dual phase operation possible)          480 ~ 780VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

89%

AC CURRENT

0.95A/400VAC           0.75A/500VAC

INRUSH CURRENT (max.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 530VAC









PROTECTION



OVERLOAD

105 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

30 ~ 36V

59 ~ 66V

Protection type : Shut down o/p voltage, re-power on to recover



OVER TEMPERATURE

100℃±5℃ (TSW) detect on heatsink of power switch

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-20 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL508, UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

114.6K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

125.5*125.2*100mm (W*H*D)

PACKING

1.3Kg; 12pcs/16.6Kg/1.29CUFT

MODEL

DRT-480-24

DRT-480-48















OUTPUT

DC VOLTAGE

24V

48V

RATED CURRENT

20A

10A

CURRENT RANGE

0 ~ 20A

0 ~ 10A

RATED POWER

480W

480W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

24 ~ 28V

48 ~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

SETUP, RISE TIME

1200ms, 40ms/400VAC           800ms, 40ms/500VAC at full load

HOLD UP TIME (Typ.)

16ms/400VAC           35ms/500VAC at full load









INPUT

VOLTAGE RANGE            Note.5

Three-Phase 340 ~ 550VAC (Dual phase operation possible)         480 ~ 780VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

89%

90%

AC CURRENT (Typ.)

1.7A/400VAC           1.3A/500VAC

INRUSH CURRENT (Typ.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 530VAC









PROTECTION



OVERLOAD

105 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

30 ~ 36V

59 ~ 66V

Protection type : Shut down o/p voltage, re-power on to recover



OVER TEMPERATURE

110℃±5℃ (TSW) detect on heatsink of power switch

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-20 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL508, UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

91.1K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

227*125.2*100mm (W*H*D)

PACKING

2.5Kg; 6pcs/16Kg/1.75CUFT

MODEL

DRT-960-24

DRT-960-48















OUTPUT

DC VOLTAGE

24V

48V

RATED CURRENT

40A

20A

CURRENT RANGE

0 ~ 40A

0 ~ 20A

RATED POWER

960W

960W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

24 ~ 28V

48 ~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

SETUP, RISE TIME

200ms, 60ms/400VAC           200ms, 60ms/500VAC at full load

HOLD UP TIME (Typ.)

14ms/400VAC           30ms/500VAC at full load









INPUT

VOLTAGE RANGE

Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG Note.5)

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

91%

92%

AC CURRENT (Typ.)

2A/400VAC           1.6A/500VAC

INRUSH CURRENT (max.)

COLD START 50A

LEAKAGE CURRENT

<3.5mA / 530VAC







PROTECTION



OVERLOAD

105 ~ 125% rated output power

Protection type : Constant current limiting, unit will shut down o/p voltage after 3 sec. , re-power on to recover



OVER VOLTAGE

30 ~ 36V

59 ~ 66V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down







ENVIRONMENT

WORKING TEMP.

-20 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6



SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL508, UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

122.5K hrs min.       MIL-HDBK-217F (25℃)

DIMENSION

276*125.2*100mm (W*H*D)

PACKING

3.3Kg; 4pcs/14.2Kg/1.14CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5. Dual phase operation(connecting L1,L3,FG}is allowed under certain derating to output load. Please refer to the derating curves for details.

6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
