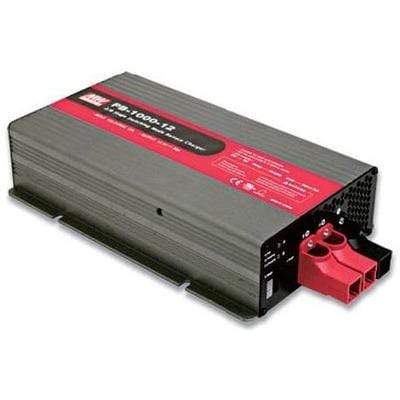

MEANWELL PB 600W/1000W Intelligent Single Output Battery Charger

$ 330.95 $ 535.00

Many In Stock

Ballast /Drivers

PB-600-12

S7

Add to wishlist
Features :
  • Charger for lead-acid batteries (flooded, Gel and AGM} and Li-ion batteries (lithium iron and lithium manganese} (Note.1}
  • 2/3/8 stage charging selectable on output panel (Note 5}
  • Built-in battery rescue function
  • Universal AC input / Full range
  • Controlled by microprocessor
  • Built-in active PFC function PF>0.95
  • Protection: Reverse Polarity / Short circuit / Over voltage / Over temperature
  • 3 color LED loading indicator
  • Built-in remote ON-OFF control
  • 2-Bank charger
  • Temperature compensation function
  • FAN on/off control (depends on charging current}

Specification:

MODEL

PB-600-12

PB-600-24

PB-600-48







OUTPUT

BOOST CHARGE VOLTAGE Vboost

14.4V

28.8V

57.6V

FLOAT CHARGE VOLTAGE Vfloat

13.8V

27.6V

55.2V

RECOMMENDED BATTERY

CAPACITY(AMP HOURS)(Note 4)



135 ~ 400AH



70 ~ 210AH



35 ~ 105AH

BATTERY TYPE

Open & Sealed Lead Acid

OUTPUT CURRENT

40A

21A

10.5A









INPUT

VOLTAGE RANGE

90 ~ 264VAC           127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

0.95/230VAC           0.98/115VAC at full load

EFFICIENCY (Typ.)

86%

87%

89%

AC CURRENT (Typ.)

6.8A/115VAC          3.4A/230VAC

INRUSH CURRENT (Typ.)

25A/115VAC           50A/230VAC

LEAKAGE CURRENT

<3.5mA / 240VAC



PROTECTION



OVER VOLTAGE

16 ~ 18V

32 ~ 35V

64.5 ~ 69.5V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down







FUNCTION

REMOTE CONTROL

Open: Normal work             Short: Stop Charging

LEAKAGE CURRENT FROM BATTERY (Typ.)

1mA

FAST CHARGE

2 / 3 / 8 stage selectable

CHARGER OK

Relay contact (RY15)

OUTPUT OK

Relay contact (RY13)

TEMPERATURE SENSE

By NTC







ENVIRONMENT

WORKING TEMP.

-20 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.05%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 3)

SAFETY STANDARDS

UL1012, TUV EN60335-1, EN60335-2-29 (except for 48V), EN60950-1(48V only), EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

135.6K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

230*158*67mm(L*W*H)

PACKING

2.2Kg; 6pcs/14.2Kg/1.76CUFT

NOTE

1.  Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.

2.  All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

3.  The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

4.  This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.

5.  Please choose the "3 stage" selection when the charger is used to charge the batteries and power the loads in the same time.

6.  The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.

MODEL

PB-1000-12

PB-1000-24

PB-1000-48











OUTPUT

BOOST CHARGE VOLTAGE Vboost

14.4V

28.8V

57.6V

FLOAT CHARGE VOLTAGE Vfloat

13.8V

27.6V

55.2V

OUTPUT CURRENT

60A

34.7A

17.4A

RECOMMENDED BATTERY

CAPACITY(AMP HOURS)(Note 4)



200 ~ 600Ah



120 ~ 350Ah



60 ~ 175Ah

BATTERY TYPE

Open & Sealed Lead Acid

LEAKAGE CURRENT FROM

BATTERY (Typ.)



<1mA









INPUT

VOLTAGE RANGE

90 ~ 264VAC           127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

0.95/230VAC           0.98/115VAC at full load

EFFICIENCY (Typ.)

85%

88%

89%

AC CURRENT (Typ.)

12A/115VAC         5.2A/230VAC

INRUSH CURRENT (Typ.)

25A/115VAC           50A/230VAC

LEAKAGE CURRENT

<3.5mA / 240VAC



PROTECTION



OVER VOLTAGE

16 ~ 18V

32 ~ 35V

64.5 ~ 69.5V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down

SHORT CIRCUIT

YES, protected by internal circuit

REVERSE POLARITY

YES, protected by internal circuit







FUNCTION

REMOTE CONTROL

Open: Normal work             Short: Stop Charging

BATTER BANKS

2 banks (A & B)

FAST CHARGE

2 / 3 / 8 stage selectable

CHARGER OK

Relay contact rating(max.): 30V/1A resistive ; "Short" when the unit is working properly, "Open"when the unit is failure or the protection function is activating

OUTPUT OK

Relay contact rating(max.): 30V/1A resistive ; "Short" when the battery is full, "Open" when the battery is still charging

TEMPERATURE COMPENSATION

By NTC, compensate both banks at the same time







ENVIRONMENT

WORKING TEMP.

-20 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.05%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes



SAFETY & EMC

(Note 3)

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, EAC TP TC 004 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32), EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020



OTHERS

MTBF

127.4K hrs min.        MIL-HDBK-217F (25℃)

DIMENSION

300*184*70mm(L*W*H)

PACKING

3.5Kg; 4pcs/15Kg/1.83CUFT

NOTE

1.  Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.

2.  All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

3.  The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

4.  This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.

5.  Please choose the "3 stage" selection when the charger is used to charge the batteries and power the loads in the same time.

6.  The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft}.
