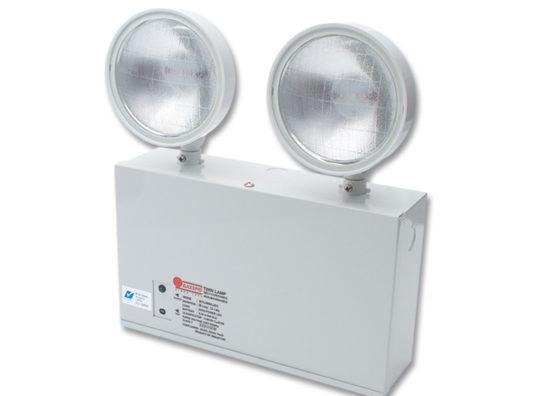

Maxspid Twin Lamp 2x3W LED MTL/NM/L203 NC Emergency Light

$ 79.00 $ 146.00

Many In Stock

EXIT/Emergency

MTLNML203NC

Maxspid

Add to wishlist

For the datasheet click here.

TWIN LAMP MTL NC:

Key Features:
> High Brightness Output
> High Lumen/watt Efficiency
> Low Power Consumption
> Low Maintenance
> Long Lifespan

> IP30/IP65

Technical Specifications:

WEIGHT 2.6 kg

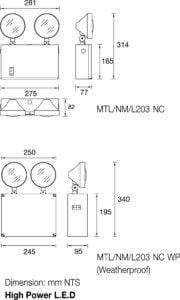

DIMENSIONS 281 x 77 x 314 mm
MODE OF OPERATION

Non-Maintained

LAMP

2 x 3W High Power LED

RATED DURATION

3 hr and others

MAINS SUPPLY

230 Volts

MAINS FREQUENCY

50/60 Hz

POWER CONSUMPTION

> 2VA

BATTERY

Maintenance-free sealed lead calcium battery (High temp nickel cadmium available)

CHARGE MONITOR

Green LED Ø5mm

TEST FACILITY

Micro Switch

SAFETY FEATURE

Low volt cut-off preventing battery overdischarge

FITTING CONSTRUCTION

Electro galvanished steel with epoxy powder coating. The adjustable fire-retardant lamp-heads allow flexibility in angle of protection. Lamp heads comes with anti-glare lens.

MOUNTING

Wall

CABLE ENTRY

Ø20mm K/O hole

COMPLIANCE

SS 563 : Part 1 & 2, SS IEC 60598-2-22

WARRANTY

1 Year



Ordering Guide:

Model Lamp Battery type
MTL/NM/L203 NC 2 x 3W LED Nickel cadmium
MTL/NM/L203 NC WP 2 x 3W LED Nickel cadmium
