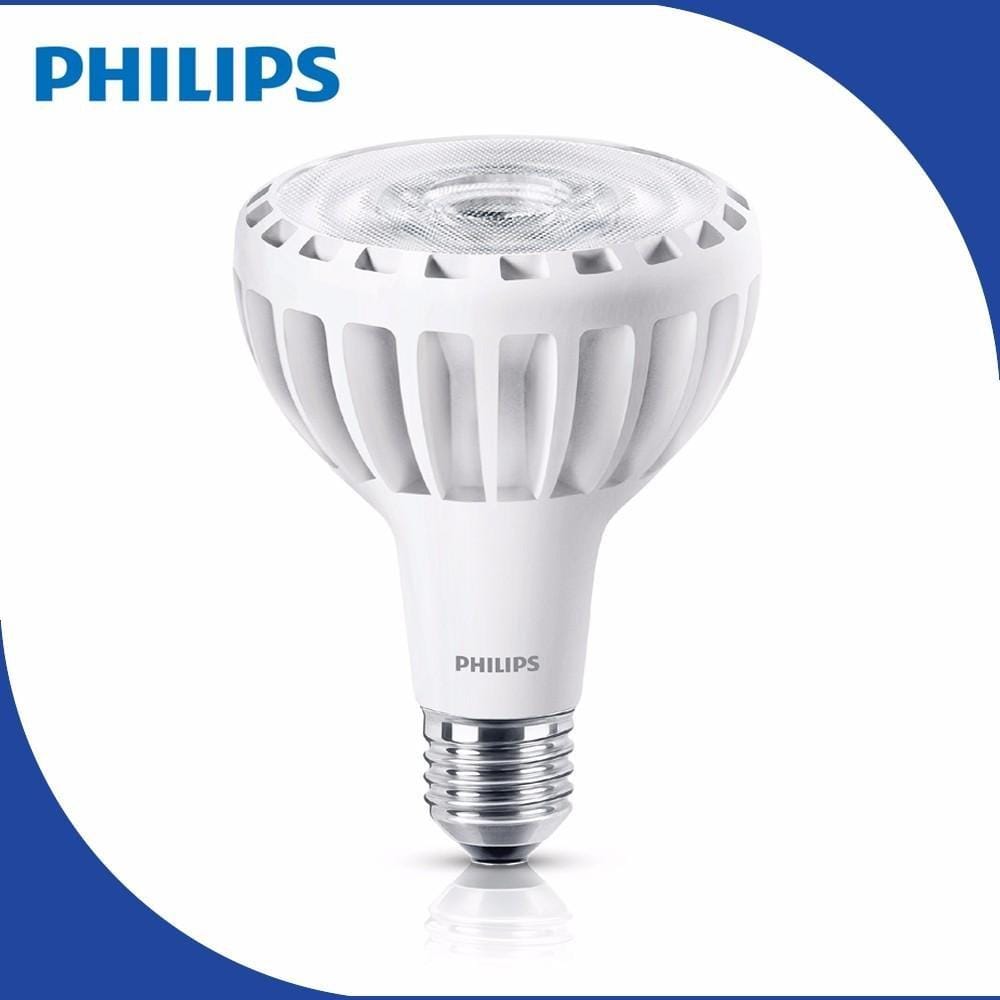

Specifications 20W PAR30L

General Information

Cap-Base	E27  [ Single Contact Medium Screw]
Nominal Lifetime (Nom)	25000 h
Switching Cycle	50000X

Technical Type

32-250W

Light Technical

Color Code	830  [ CCT of 3000K]
Beam Angle (Nom)	15 °
Luminous Flux (Nom)	1800 lm / 1850 lm / 3000 lm / 3850 lm / 4000 lm / 4200 lm / 4300 lm / 4500 lm / 4600lm
Luminous Flux (Rated) (Nom)	1800 lm / 1850 lm / 3000 lm / 3850 lm / 4000 lm / 4200 lm / 4300 lm / 4500 lm / 4600 lm
Luminous Intensity (Nom)	18000 cd / 18500 cd / 5400 cd / 5550 cd / 26000 cd /   27000 cd /  9200 cd / 9600 cd / 38500 cd / 40000 cd / 42000 cd / 13000 cd / 13500 cd / 14000 cd
Color Designation	White (WH)
Rated Beam Angle	15 D / 30 D

Correlated Color Temperature (Nom)	3000 K / 4000 K / 5700 K
Luminous Efficacy (rated) (Nom)	88 lm/W
Color Consistency	<6
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and Electrical

Input Frequency	50 to 60 Hz
Power (Rated) (Nom)	20 W / 32 W / 40 W
Lamp Current (Nom)	280 mA
Wattage Equivalent	250 W
Starting Time (Nom)	0.5 s

Warm Up Time To 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.85
Voltage (Nom)	240 V

Temperature

T-Case Maximum (Nom)

95 °C

Controls and Dimming

Dimmable

No
