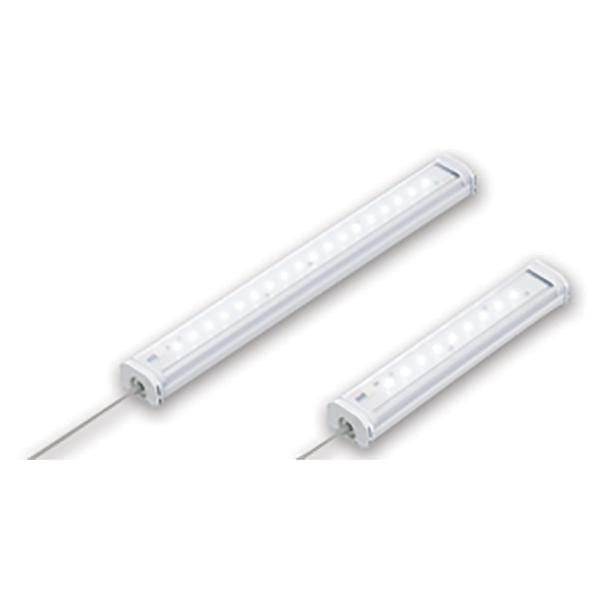

Idec 100-240V ac LF2B LED Illumination Unit 5500K, White, IP65

Idec 100-240V ac LF2B LED Illumination Unit 5500K, White, IP65

SKU SKU:1824259

Regular price $ 487.00 SGD
Regular price $ 525.00 SGD Sale price $ 487.00 SGD
Sale Sold out
Shipping calculated at checkout.
Model No
Power

Low stock: 8 left

Technical data sheets

Data Sheet

LF2B-B3P-ATHWW2-1M - 210mm

LF2B-B4P-ATHWW2-1M - 210mm

LF2B-C3P-ATHWW2-1M - 330mm

LF2B-D3P-ATHWW2-1M - 580mm

LF2B-D4P-ATHWW2-1M - 580mm

LF2B-E3P-ATHWW2-1M - 830mm

LF2B-E4P-ATHWW2-1M - 930mm

LF2B-F3P-ATHWW2-1M - 1080mm

LF2B-F4P-ATHWW2-1M - 1080mm

*Check stock before ordering. Lead time 4 working days.*

Product Details

Super-bright and energy efficient LF2B LED strips have a wide range of input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC with a choice of clear or white covers. These slim units can be used in many applications and installations where space is limited. With protection from water and dust the LF2B is can be used where water is being sprayed. Choice of two mounting brackets provide flexibility to locate these lights where needed. With a long life span, with approximately 54% less power consumption compared with fluorescent tube lighting, the LF2B series LED light strips are a bright choice now and in the future.

Input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC
Slim units: 40mm (w) x 29mm (h). Using mounting brackets, one-step installation in a narrow space is possible.
Five Lengths (210/330/580/830/1,080mm) are offered to meet space requirements and illumination coverages
Bright and clear white LED illuminates the shapes and colours of target objects. (LF2B illuminance is approximately 25% higher than the LF1B.)
Two covers: clear or white
Waterproof, dustproof, suitable for use in wet locations

Specifications

LF2B-B3P-ATHWW2-1M - 210mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 210 mm
Width 40 mm
Depth 29 mm
Wattage 3.8 W
Colour Temperature 5500K
Light Colour White
Current Rating 33 mA
Standards Met CE, cULus Lisited
Series LF2B
Lamp Supplied Yes
Model LF2B-B3P-ATHWW2-1M
Diffuser Finish Clear


LF2B-B4P-ATHWW2-1M - 210mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 210 mm
Width 40 mm
Depth 29 mm
Wattage 3.8 W
Colour Temperature 5500K
Light Colour White
Lamp Supplied Yes
Current Rating 33 mA
Diffuser Finish White
Series LF2B


LF2B-C3P-ATHWW2-1M - 330mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 330 mm
Width 40 mm
Depth 29 mm
Wattage 7.5 W
Colour Temperature 5500K
Light Colour White
Standards Met CE, cULus Lisited
Series LF2B
Current Rating 67 mA
Lamp Supplied Yes
Model LF2B-C3P-ATHWW2-1M
Diffuser Finish Clear


LF2B-C4P-ATHWW2-1M - 330mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 330 mm
Width 40 mm
Depth 29 mm
Wattage 7.5 W
Colour Temperature 5500K
Light Colour White
Series LF2B
Lamp Supplied Yes
Standards Met CE, cULus Lisited
Current Rating 67 mA
Model LF2B-C4P-ATHWW2-1M
Diffuser Finish White


LF2B-D3P-ATHWW2-1M - 580mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 580 mm
Width 40 mm
Depth 29 mm
Wattage 9.2 W
Colour Temperature 5500K
Light Colour White
Lamp Supplied Yes
Standards Met CE, cULus Lisited
Series LF2B
Current Rating 96 mA
Model LF2B-D3P-ATHWW2-1M
Diffuser Finish Clear


LF2B-D4P-ATHWW2-1M - 580mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 580 mm
Width 40 mm
Depth 29 mm
Wattage 9.2 W
Colour Temperature 5500K
Light Colour White
Current Rating 96 mA
Lamp Supplied Yes
Diffuser Finish White
Series LF2B
Standards Met CE, cULus Lisited
Model LF2B-D4P-ATHWW2-1M



LF2B-E3P-ATHWW2-1M - 830mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 830 mm
Width 40 mm
Depth 29 mm
Wattage 14.3 W
Colour Temperature 5500K
Light Colour White
Diffuser Finish Clear
Lamp Supplied Yes
Standards Met CE, cULus Lisited
Series LF2B
Current Rating 149 mA
Model LF2B-E3P-ATHWW2-1M


LF2B-E4P-ATHWW2-1M - 930mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 830 mm
Width 40 mm
Depth 29 mm
Wattage 14.3 W
Colour Temperature 5500K
Light Colour White
Model LF2B-E4P-ATHWW2-1M
Diffuser Finish Clear
Standards Met CE, cULus Lisited
Series LF2B
Current Rating 149 mA
Lamp Supplied Yes


LF2B-F3P-ATHWW2-1M - 1080mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 1.08 m
Width 40 mm
Depth 29 mm
Wattage 21.8 W
Colour Temperature 5500K
Light Colour White
Series LF2B
Model LF2B-F3P-ATHWW2-1M
Diffuser Finish White
Standards Met CE, cULus Lisited
Lamp Supplied Yes
Current Rating 226 mA


LF2B-F4P-ATHWW2-1M - 1080mm

Attribute Value
Lamp Type LED
Type LED Illumination Unit
Voltage Rating 100 → 240 V ac
Length 1.08 m
Width 40 mm
Depth 29 mm
Wattage 21.8 W
Colour Temperature 5500K
Light Colour White
Current Rating 226 mA
Series LF2B
Standards Met CE, cULus Lisited
Lamp Supplied Yes
Diffuser Finish White
Model LF2B-F4P-ATHWW2-1M
