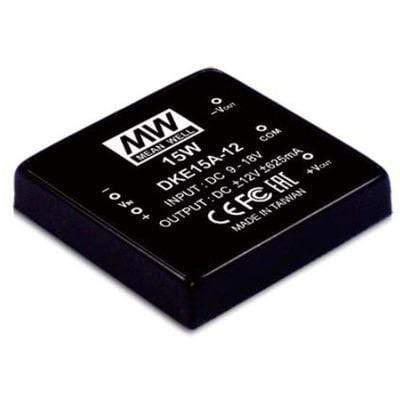

MEANWELL Dual-output DC-DC regulated converter (DKE15A)

$ 41.08 $ 44.00

Many In Stock

Ballast /Drivers

DKE15A-05

S7

Add to wishlist

For Specification Sheet Click Here

Features:

  • 2:1 wide input range
  • 4:1 wide input range(optionl)
  • 1000VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty



Specifications:

ORDER NO. DKE15A-05 DKE15B-05 DKE15C-05 DKE15A-12 DKE15B-12 DKE15C-12
OUTPUT DC VOLTAGE 5V 12V
CURRENT RANGE 150 ~ 1500mA 62.5 ~ 625mA
RATED POWER 15W
RIPPLE & NOISE 50mVp-p 60mVp-p
LINE REGULATION 0.30%
LOAD REGULATION 0.50%
VOLTAGE ACCURACY 2.00%
SWITCHING FREQUENCY 150KHz  min.
INPUT VOLTAGE RANGE A: 9 ~ 18VDC     B: 18 ~ 36VDC      C: 36 ~ 72VDC
EFFICIENCY 81% 83% 79% 82% 83% 82%
DC CURRENT Full load A: 1700mA B: 800mA C: 400mA
No load A: 40mA B: 20mA C: 10mA
FILTER Pi  network
PROTECTION Fuse recommended
PROTECTION OVER CURRENT 160% ~ 250%  rated output power
Protection type :  Hiccup mode, recovers automatically after fault condition is removed
 SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25~+71oC (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH  non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03% /oC ( 0 ~ 50 oC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC WITHSTAND VOLTAGE I/P-O/P:1KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
EMI CONDUCTION & RADIATION Compliance to EN55022 Class B, FCC part 15 Class B
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8, light industry level,  criteria A
OTHERS MTBF 300Khrs min.  MIL-HDBK-217F (25 )
DIMENSION 50.8*50.8*11.0mm  .or 2"*2"*0.43" inch (L*W*H)
WEIGHT 65g
